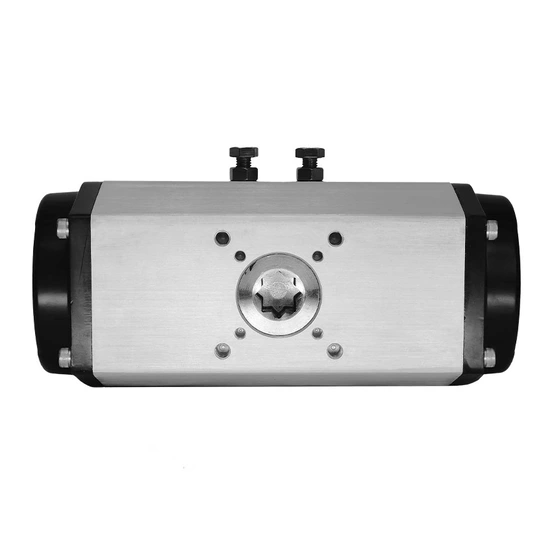

<p>GTE product model image</p>

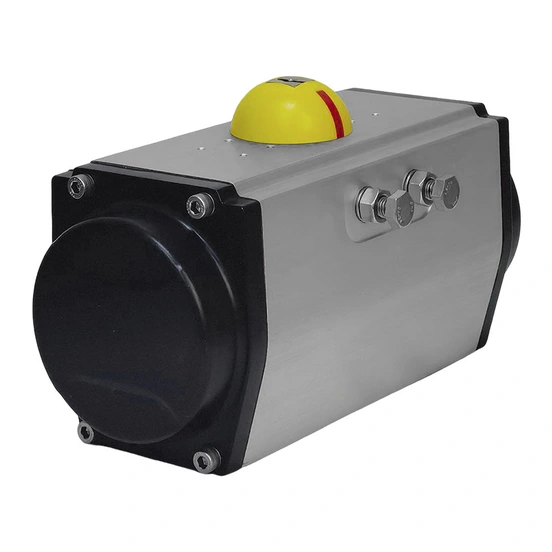

<p>GTE product model image</p>

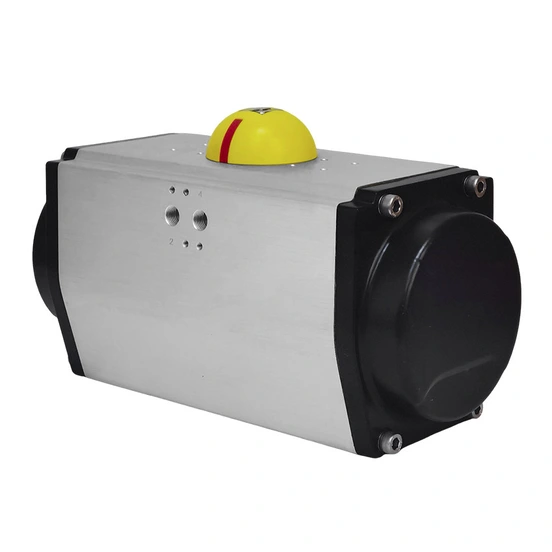

<p>GTE product model image</p>

Rotork

GTE

GTE

The GTE range delivers a cost-efficient rack and pinion actuation solution with double-acting and spring return options. Optimised for 90° rotation, it offers wide torque capability, multiple body sizes, NAMUR/ISO compliant mounting, and easy field conversion between double-acting and spring-return configurations, making it ideal for diverse valve automation applications across different industries. Efficient rack and pinion actuation solution with double acting and spring return options. Optimised for 90° rotation, it offers wide torque capability, multiple body sizes, NAMUR/ISO compliant mounting, and easy field conversion.

Contact Us

Features
  • Optimised rack & pinion design for part-turn valve control turn valve control
  • Wide range of body sizes available in both double-acting and spring return models acting and spring return models
  • Easy configuration change between double-acting and spring return by adding or removing spring cartridges acting and spring return by adding or removing spring cartridges
  • 90° rotation as standard, with precise ±5° stroke adjustment at 0° and 90°
  • Operating pressure: 2.5–8 bar
  • Max inlet pressure: 12 bar
  • Torque: 2–6,300 Nm
  • Temperature options for both normal and enhanced ranges
  • NAMUR & ISO 5211 compliant mounting interfaces for easy integration with valves and accessories
  • Durable construction using anodised aluminium bodies, nickel-plated steel pinions, and high-quality O-rings plated steel pinions, and high quality O rings
  • Optional valve mounting kits and de mounting kits and de clutchable manual overrides available
  • Full range of inhouse instrumentation accessories available for complete valve automation assemblies
Features
Features
  • Optimised rack & pinion design for part-turn valve control turn valve control
  • Wide range of body sizes available in both double-acting and spring return models acting and spring return models
  • Easy configuration change between double-acting and spring return by adding or removing spring cartridges acting and spring return by adding or removing spring cartridges
  • 90° rotation as standard, with precise ±5° stroke adjustment at 0° and 90°
  • Operating pressure: 2.5–8 bar
  • Max inlet pressure: 12 bar
  • Torque: 2–6,300 Nm
  • Temperature options for both normal and enhanced ranges
  • NAMUR & ISO 5211 compliant mounting interfaces for easy integration with valves and accessories
  • Durable construction using anodised aluminium bodies, nickel-plated steel pinions, and high-quality O-rings plated steel pinions, and high quality O rings
  • Optional valve mounting kits and de mounting kits and de clutchable manual overrides available
  • Full range of inhouse instrumentation accessories available for complete valve automation assemblies
Downloads
Product Brochures
PUB110-016 - GTE Range Brochure - English (pdf)
Drawings/Dimensions Data
GTEA-050 actuator - 3D Solid model drawings for CAD systems (sat)
GTEA-050 actuator - 3D Solid model drawings for CAD systems (igs)
GTEA-050 actuator - 3D Solid model drawings for CAD systems (x_t)
GTEA-050 actuator - 3D Solid model drawings for CAD systems (stp)
GTEA-065 actuator - 3D Solid model drawings for CAD systems (sat)
GTEA-065 actuator - 3D Solid model drawings for CAD systems (stp)
GTEA-065 actuator - 3D Solid model drawings for CAD systems (x_t)
GTEA-065 actuator - 3D Solid model drawings for CAD systems (igs)
GTEA-075 actuator - 3D Solid model drawings for CAD systems (stp)
GTEA-075 actuator - 3D Solid model drawings for CAD systems (igs)
GTEA-075 actuator - 3D Solid model drawings for CAD systems (sat)
GTEA-075 actuator - 3D Solid model drawings for CAD systems (x_t)
GTEA-085 actuator - 3D Solid model drawings for CAD systems (sat)
GTEA-085 actuator - 3D Solid model drawings for CAD systems (igs)
GTEA-085 actuator - 3D Solid model drawings for CAD systems (x_t)
GTEA-085 actuator - 3D Solid model drawings for CAD systems (stp)
GTEA-095 actuator - 3D Solid model drawings for CAD systems (x_t)
GTEA-095 actuator - 3D Solid model drawings for CAD systems (stp)
GTEA-095 actuator - 3D Solid model drawings for CAD systems (sat)
GTEA-095 actuator - 3D Solid model drawings for CAD systems (igs)
GTEA-110 actuator - 3D Solid model drawings for CAD systems (sat)
GTEA-110 actuator - 3D Solid model drawings for CAD systems (stp)
GTEA-110 actuator - 3D Solid model drawings for CAD systems (x_t)
GTEA-110 actuator - 3D Solid model drawings for CAD systems (igs)
GTEA-125 actuator - 3D Solid model drawings for CAD systems (x_t)
GTEA-125 actuator - 3D Solid model drawings for CAD systems (igs)
GTEA-125 actuator - 3D Solid model drawings for CAD systems (sat)
GTEA-125 actuator - 3D Solid model drawings for CAD systems (stp)
GTEA-140 actuator - 3D Solid model drawings for CAD systems (stp)
GTEA-140 actuator - 3D Solid model drawings for CAD systems (igs)
GTEA-140 actuator - 3D Solid model drawings for CAD systems (x_t)
GTEA-140 actuator - 3D Solid model drawings for CAD systems (sat)
GTEA-160 actuator - 3D Solid model drawings for CAD systems (sat)
GTEA-160 actuator - 3D Solid model drawings for CAD systems (stp)
GTEA-160 actuator - 3D Solid model drawings for CAD systems (igs)
GTEA-160 actuator - 3D Solid model drawings for CAD systems (x_t)
GTEA-190 actuator - 3D Solid model drawings for CAD systems (sat)
GTEA-190 actuator - 3D Solid model drawings for CAD systems (x_t)
GTEA-190 actuator - 3D Solid model drawings for CAD systems (igs)
GTEA-190 actuator - 3D Solid model drawings for CAD systems (stp)
GTEA-210 actuator - 3D Solid model drawings for CAD systems (igs)
GTEA-210 actuator - 3D Solid model drawings for CAD systems (stp)
GTEA-210 actuator - 3D Solid model drawings for CAD systems (sat)
GTEA-210 actuator - 3D Solid model drawings for CAD systems (x_t)
GTEA-240 actuator - 3D Solid model drawings for CAD systems (x_t)
GTEA-240 actuator - 3D Solid model drawings for CAD systems (igs)
GTEA-240 actuator - 3D Solid model drawings for CAD systems (stp)
GTEA-240 actuator - 3D Solid model drawings for CAD systems (sat)
GTEA-270 actuator - 3D Solid model drawings for CAD systems (igs)
GTEA-270 actuator - 3D Solid model drawings for CAD systems (sat)
GTEA-270 actuator - 3D Solid model drawings for CAD systems (x_t)
GTEA-270 actuator - 3D Solid model drawings for CAD systems (stp)
GTEA-300 actuator - 3D Solid model drawings for CAD systems (sat)
GTEA-300 actuator - 3D Solid model drawings for CAD systems (stp)
GTEA-300 actuator - 3D Solid model drawings for CAD systems (x_t)
GTEA-300 actuator - 3D Solid model drawings for CAD systems (igs)
GTEA-300 F25 actuator - 3D Solid model drawings for CAD systems (igs)
GTEA-300 F25 actuator - 3D Solid model drawings for CAD systems (stp)
GTEA-300 F25 actuator - 3D Solid model drawings for CAD systems (sat)
GTEA-300 F25 actuator - 3D Solid model drawings for CAD systems (x_t)
Certificates
PUB110-020 - GTE ATEX Certification - English (pdf)
PUB110-021 - GTE SIL Certification - English (pdf)
PUB110-022 - GTE EU Declaration of Conformity - English (pdf)
