Hanbay Inc.

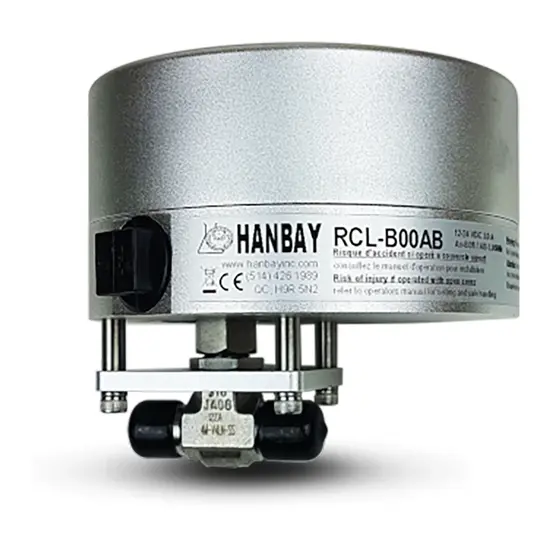

RCL-000XX-3-4M-V4LN-SS
Hanbay R Series
Valve: 4M-V4LN-SS
Valve manufacturer: Parker
Valve type: Needle valve
Valve material: Stainless Steel
Valve connection: 1/4 in. NPT
Line size: 0.25
CV: 0.43
Pressure: 5000 PSI
Valve manufacturer: Parker
Valve type: Needle valve
Valve material: Stainless Steel
Valve connection: 1/4 in. NPT
Line size: 0.25
CV: 0.43
Pressure: 5000 PSI
Enclosures*
• Standard Aluminum enclosure
• Stainless-Steel enclosure
• Class I Div I Groups B,C,D (CSA and IECEx rated)
• Stainless-Steel Class I Div I Groups B,C,D (CSA and IECEx rated)
IP68 enclosures available*
Control Settings
• Analog (4-20 mA or 1-5 V)
• Modbus (RS485)
• TTL input 0 V (pull to ground)variable positioning
Feedback Options
• None
• 4-20 mA feedback
Other Features
• Manual Override
• 110-240 VAC Power
• Battery Backup (min. 24 VDC power required)
• Isolated Input
• Prewired Turck M12 connector with 20 ft cable
• High Temperature Mounting Kit
Features
• Valve: 4M-V4LN-SS
• Valve manufacturer: Parker
• Valve type: Needle valve
• Valve material: Stainless Steel
• Valve connection: 1/4 in. NPT
• Line size: 0.25
• CV: 0.43
• Pressure: 5000 PSI
• Valve manufacturer: Parker
• Valve type: Needle valve
• Valve material: Stainless Steel
• Valve connection: 1/4 in. NPT
• Line size: 0.25
• CV: 0.43
• Pressure: 5000 PSI
Features
Features
• Valve: 4M-V4LN-SS
• Valve manufacturer: Parker
• Valve type: Needle valve
• Valve material: Stainless Steel
• Valve connection: 1/4 in. NPT
• Line size: 0.25
• CV: 0.43
• Pressure: 5000 PSI
• Valve manufacturer: Parker
• Valve type: Needle valve
• Valve material: Stainless Steel
• Valve connection: 1/4 in. NPT
• Line size: 0.25
• CV: 0.43
• Pressure: 5000 PSI
