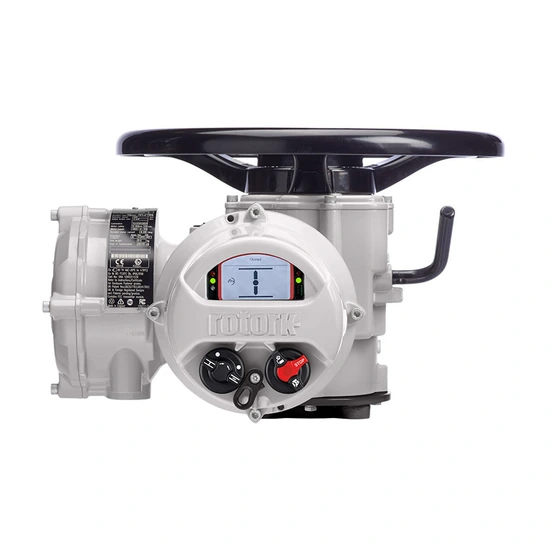

• IQ3 Pro multi-turn 1-phase, 3-phase and DC electric actuators are designed for isolation or regulating duties of up to 60 starts per hour
• The IQ3 Pro range builds upon the industry-leading IQ3 with the addition of a ‘connected platform’, enabling the development of new features to drive digitalisation and future-proofing of electric actuation
• IQ3 Pro range can be configured and controlled via the Rotork App for smartphones which also allows data log extraction from the actuator. Data logs can be exported from the App to Rotork Insight 2 software or sent to Rotork’s secure cloud-based intelligent asset management (iAM) system for detailed analysis and preventative maintenance planning
• IQ3 Pro range
• is available with fully integrated ethernet, which is compatible with EtherNet/IP Modbus TCP and PROFINET protocols
• IQ3 Pro range are available with multiport functionality allowing control of multiport valves, allowing the input or output of product to be diverted to any one of 3 to 16 ports
• IQ3 Pro range
• is available with closed-loop control, incorporating the on-off/bang-bang control or PID control methodologies that are typically used in a PLC or discrete PID controller
• Watertight and explosionproof to international standards
• Water ingress protection, not reliant on terminal cover or cable gland sealing – double-sealed to IP66/68 (7 m for 72 hours)
• Certified for safety applications (SIL2/3)
• Continuous position tracking at all times, even without power
• Rapid and secure commissioning & configuration even without power, via non-intrusive and intrinsically safe Rotork Bluetooth® Setting Tool Pro

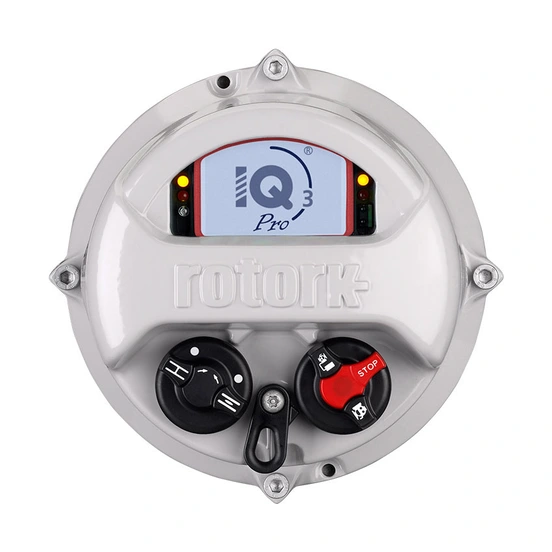

• Advanced, multilingual display for status and setup with highly intuitive user interface
• Real-time valve and actuator performance information viewable on screen
• Onboard data logger provides valve torque and starts profiles, operational statistics, events log, actuator configuration and manufacturing data
• Analysis of data logger information with InSight 2 PC software or Rotork’s Intelligent Asset Management (iAM) secure cloud-based system
• Oil bath lubrication provides extended life and the ability to mount in any orientation
• On power loss, graphical interface, remote indication and data logger are maintained and accessible
• Increased protection by using independent torque and position sensing
• Safe, motor-independent, handwheel operation available at all times
• Compatible with a wide variety of fieldbus, hardwired and analogue site systems
• Remote operation, configuration and commissioning up to 100 m from actuator, with Remote Hand Station
• Easy installation and maintenance using detachable thrust bases
• Field upgradeable and configurable control & indication options, using the Bluetooth® enabled setting tool
• Backwards compatibility upgrade services available*
*Contact Rotork for latest product range availability
