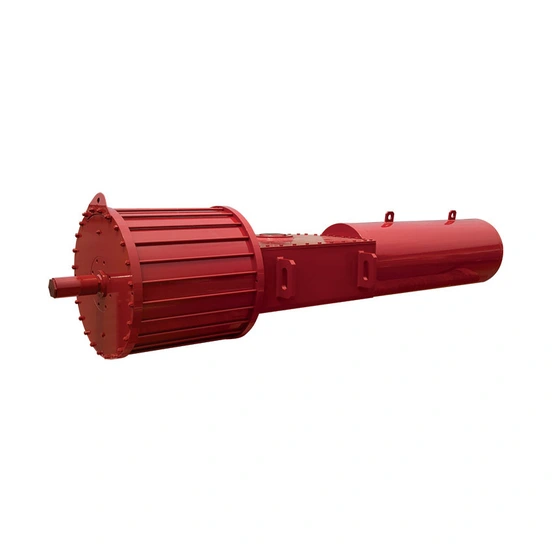

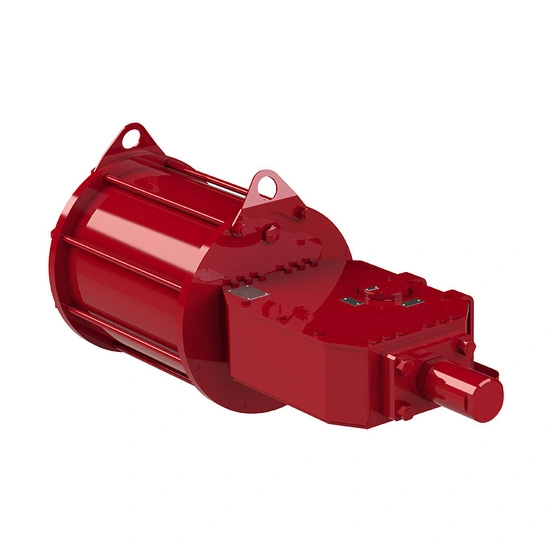

GP and GH Range - Heavy-duty scotch yoke actuators - GP pneumatic

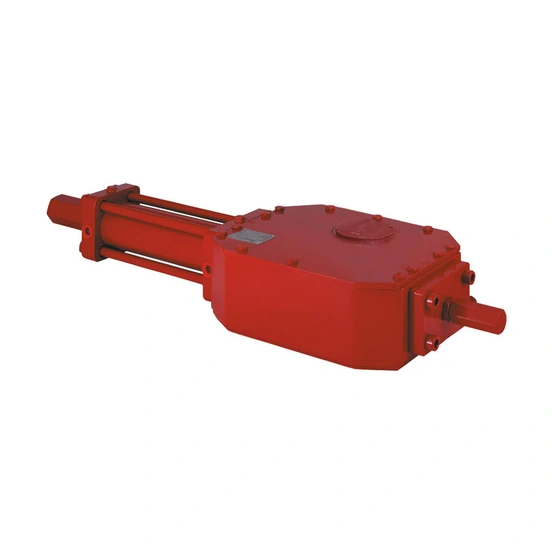

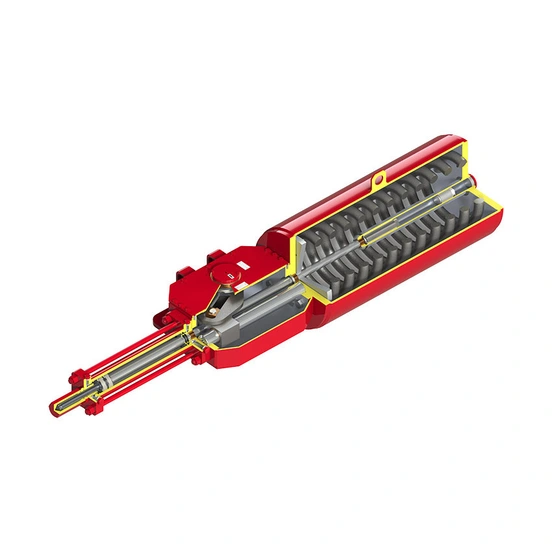

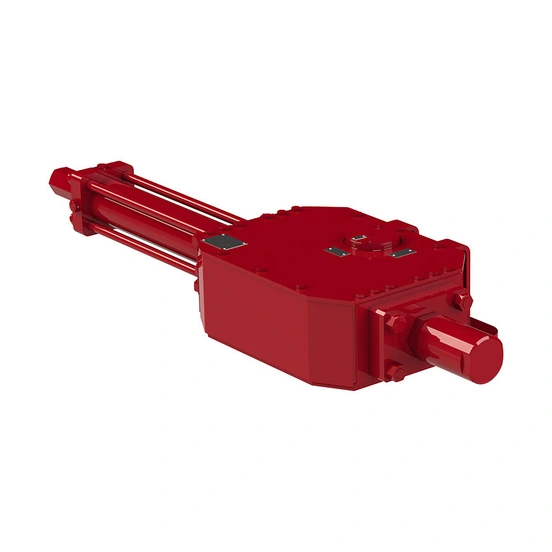

GP and GH Range - Heavy-duty scotch yoke actuators - GH hydraulic

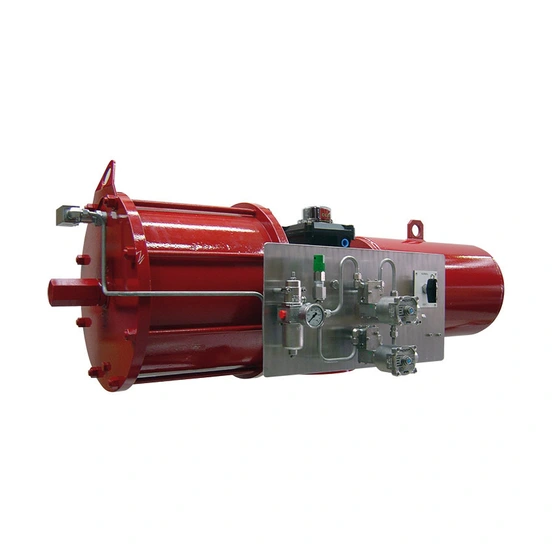

GP and GH Range - Heavy-duty scotch yoke actuators - GP pneumatic - Bifold - Soldo

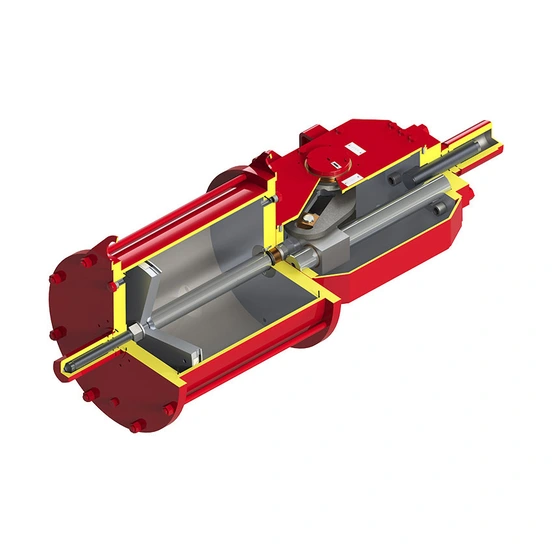

GP and GH Range - Heavy-duty scotch yoke actuators - GP-DA section

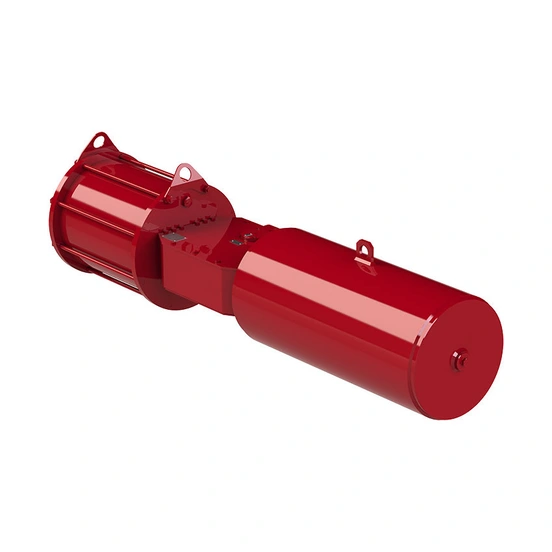

GP and GH Range - Heavy-duty scotch yoke actuators - GP-SR render

Rotork

GP/GH

GP/GH

GP/GH range scotch yoke actuators are designed to operate ball, butterfly and plug valves requiring a rotary, quarter-turn movement for either on/off or modulating duty and can be supplied with symmetrical or canted torque arms. The robust design has been proven in thousands of diverse applications the world over.

Contact Us

Features
• Pneumatic and hydraulic scotch yoke actuators (symmetric or canted yoke)
• Double-acting and spring-return configurations
• Fail close/fail open
• For on/off and modulating
• Corrosion resistant electroless nickel-plated cylinders
• Certified to IP 66M/67M
• Certified to ATEX 2014/34/EU
• Certified in accordance with PED 2014/68/EU
• Certified suitable for use at SIL3 as a single device in accordance with IEC 61508
• Optional emergency manual override suitable to operate the actuator in the event of fluid supply failure
Features
Features
• Pneumatic and hydraulic scotch yoke actuators (symmetric or canted yoke)
• Double-acting and spring-return configurations
• Fail close/fail open
• For on/off and modulating
• Corrosion resistant electroless nickel-plated cylinders
• Certified to IP 66M/67M
• Certified to ATEX 2014/34/EU
• Certified in accordance with PED 2014/68/EU
• Certified suitable for use at SIL3 as a single device in accordance with IEC 61508
• Optional emergency manual override suitable to operate the actuator in the event of fluid supply failure
Downloads
Product Brochures
PUB011-008 - PC-Intertechnik Gas-Hydraulic Range Flyer - English (pdf)
PUB011-001 - GP/GH Brochure - English (pdf)
PUB010-032 - cHPU Compact Hydraulic Power Unit sales flyer - English (pdf)
Manuals
PUB011-004 - GP Range Installation and Maintenance Manual - English (pdf)
PUB011-007 - GH Installation and Maintenance Manual - English (pdf)
Drawings/Dimensions Data
GH Range with HP Override General Dimension Data - Metric (pdf)
GP Functional Safety Data (pdf)
GP Range General Dimension Data - Metric (pdf)
GP Range with HP Override General Dimension Data - Metric (pdf)
GP Range with M Override General Dimension Data - Metric (pdf)
GP Range with MHD Override General Dimension Data - Metric (pdf)
GP Range General Dimension Data - Metric (pdf)
GP SIL Functional Safety Data (pdf)
Technical Information
PUB011-010 - GP Range with M Override General Dimension Data - Metric - English (xls)
PUB011-012 - GP Range with MHD Override General Dimension Data - Metric - English (xls)
PUB011-006 - GH Range Torque Data - Metric - English (xlsx)
PUB011-031 - GP Double Acting Dimension Data - Metric - English (pdf)
PUB011-020 - GH Range General Dimension Data - Metric - English (xls)
PUB011-018 - GP Range with HP Override General Dimension Data - Metric - English (xls)
PUB011-002 - GP Range Torque Data - Imperial - English (xlsx)
PUB083-002 - G Range Power Control Coupling Dimension Data - Metric (GP / GH / GO / HPG) - English (pdf)
PUB011-030 - GP Spring Return Dimension Data – Metric - English (pdf)
PUB011-016 - GH Range with HP Override General Dimension Data - Metric - English (xls)
PUB011-005 - GH Range Torque Data - Imperial - English (xlsx)
PUB011-011 - GP Range General Dimension Data - Metric - English (xls)
PUB011-003 - GP Range Torque Data - Metric - English (pdf)
PUB083-003 - G Range Microswitch Coupling Dimension Data - Metric (GP / GH / GO / HPG) - English (pdf)
PUB083-001 - G Range Valve Coupling Dimension Data - Metric (GP / GH / GO / HPG) - English (pdf)
Certificates
PUB011-037 - GH-S GH-D SIL Functional Safety Data - Suzhou - English (pdf)
PUB011-036 - GP-S GP-D SIL Functional Safety Data - Suzhou - English (pdf)
PUB010-037 - RFS ATEX Certificate - Rochester - English (pdf)
PUB010-048 - RFS ATEX Certificate - Suzhou - English (pdf)
PUB011-034 - GP-D SIL Functional Safety Data - Chennai - English (pdf)
PUB011-033 - GP-S / GH SIL Functional Safety Data - Chennai - English (pdf)
PUB011-023 - GH-S SIL Functional Safety Data - Lucca - English (pdf)
PUB011-024 - GH-D - SIL Functional Safety Data - Lucca - English (pdf)
PUB011-022 - GP-D SIL Functional Safety Data - Lucca (Withdrawn) - English (pdf)
PUB010-043 - GP/S GP/D SIL Functional Safety Data - HDM – Lucca - English (pdf)
PUB010-010 - RFS PED Compliance Certificate Mod. H - Lucca - English (pdf)
PUB010-045 - RFS PED compliance certificate MOD H1 – Lucca - English (pdf)
PUB011-038 - GP-S SIL Functional Safety Data - Thirumazhisai - English (pdf)
PUB011-035 - GH-S GH-D SIL Functional Safety Data - Shanghai (Withdrawn) - English (pdf)
PUB011-025 - GP-S SIL Functional Safety Data - Rochester - English (pdf)
PUB010-033 - Rotork Fluid Systems SRL ISO 14001 Certificate - English (pdf)
PUB011-039 - GP-D SIL Functional Safety Data - Thirumazhisai - English (pdf)
PUB011-026 - GP-D SIL Functional Safety Data - Rochester (Withdrawn) - English (pdf)
PUB011-013 - GP/GH Range IP66 and IP67 Conformity Certificate - English (pdf)
PUB011-027 - GH-S SIL Functional Safety Data - Rochester - English (pdf)
PUB007-015 - Q300 and Q450 IP68 Certificate - English (pdf)
PUB011-028 - GH-D SIL Functional Safety Data - Rochester (Withdrawn) - English (pdf)
PUB011-021 - GP-S SIL Functional Safety Data - Lucca - English (pdf)
PUB011-041 - GP/GH Range IECEx Certificate of Conformity - English (pdf)
PUB011-040 - GP Range - ABS Type Certification - English (pdf)
