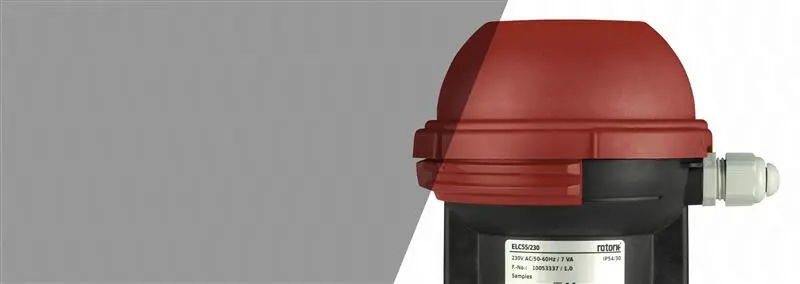

<p>ELC banner</p>

ELC Range

Electric Industrial Actuators
Home
The ELC range of standard and spring-return electric linear actuators offers a compact, reliable, and cost-effective solution for small to large linear valve applications. The range delivers thrusts from 0.6 kN to 25 kN. Each actuator is engineered for flexibility and performance, featuring adjustable actuation times, IP54 or IP65 protection ratings, and optional enhancements such as analogue output signals (4-20 mA), integrated limit switch units, and P10 firmware on selected models for advanced control functionality.
ELC 55
ELC 55 / ELC 55Y
Compact actuator with 0.6 kN thrust
ELC 100
ELC 100
Offers 1 kN thrust and up to 20 mm stroke
ELC 160
ELC 160
Provides 1.6 kN thrust and up to 30 mm stroke
ELC 220
ELC 220
Delivers 2.2 kN thrust and up to 30 mm stroke
ELC 400
ELC 400
4 kN thrust and up to 60 mm stroke
ELC 500
ELC 500
Offers 5 kN thrust and up to 60 mm stroke
ELC 1000
ELC 1000
10 kN thrust and up to 80 mm stroke
ELC 55
ELC 55 / ELC 55Y
Compact actuator with 0.6 kN thrust
ELC 100
ELC 100
Offers 1 kN thrust and up to 20 mm stroke
ELC 160
ELC 160
Provides 1.6 kN thrust and up to 30 mm stroke
ELC 220
ELC 220
Delivers 2.2 kN thrust and up to 30 mm stroke
ELC 400
ELC 400
4 kN thrust and up to 60 mm stroke
ELC 500
ELC 500
Offers 5 kN thrust and up to 60 mm stroke
ELC 1000
ELC 1000
10 kN thrust and up to 80 mm stroke
ELC 1500
ELC 1500
Designed with 15 kN thrust and up to 80 mm stroke
ELC 2500
ELC 2500
Delivering 25 kN thrust and up to 100 mm stroke
ELC 100SR
ELC 100SR
Spring-return with 1 kN thrust and up to 20 mm stroke
ELC 250SR
ELC 250SR
Larger spring-return with 2.5 kN thrust and up to 40 mm stroke
Features

• Proven reliable design
• Microprocessor-controlled with automatic self-calibration on startup
• Input and output signals are independently reversible
• Input signal freely adjustable 3-point or analogue
• Manual override for emergency operation
• Wear-free position measuring system
• Adjustable deadband
• Wire break recognition in 2-10 VDC and 4-20 mA operation
• Cover-mountable in 4 positions, 90º, no screws required
• Fault recognition in continuous operation (in case of valve blockage)
• Supports a variety of power supply options to suit different installation environments and system requirements

Features
Features

• Proven reliable design
• Microprocessor-controlled with automatic self-calibration on startup
• Input and output signals are independently reversible
• Input signal freely adjustable 3-point or analogue
• Manual override for emergency operation
• Wear-free position measuring system
• Adjustable deadband
• Wire break recognition in 2-10 VDC and 4-20 mA operation
• Cover-mountable in 4 positions, 90º, no screws required
• Fault recognition in continuous operation (in case of valve blockage)
• Supports a variety of power supply options to suit different installation environments and system requirements

Downloads
Product Brochures
PUB192-001 - Rotork ELC Range brochure - English (pdf)
Manuals
PUB192-005 - Rotork ELC 400-1500 manual - English (pdf)
PUB192-006 - Rotork ELC 2500 manual - English (pdf)
PUB192-004 - Rotork ELC 100SR-250SR manual - English (pdf)
PUB192-002 - Rotork ELC 55 manual - English (pdf)
PUB192-003 - Rotork ELC 100-220 manual - English (pdf)
