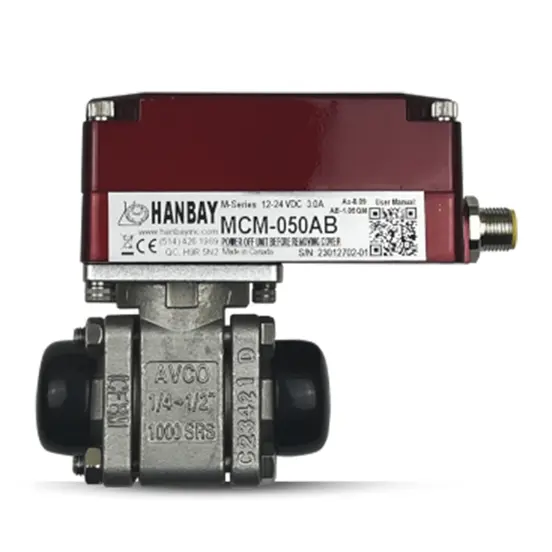

Valve: 1933TT-SE-025-BAV15
Valve manufacturer: AVCO
Valve type: Ball valve
Valve material: Stainless Steel 316
Valve connection: 1/4 in. FNPT
Line size: 0.25
CV: 1.23
Pressure: 2000 PSI

Enclosures*
• Standard Aluminum enclosure
• Stainless-Steel enclosure
• Class I Div I Groups B,C,D (CSA and IECEx rated)
• Stainless-Steel Class I Div I Groups B,C,D (CSA and IECEx rated)
IP68 enclosures available*

Control Settings
• Analog (4-20 mA or 1-5 V)
• Modbus (RS485)
• TTL input 0 V (pull to ground)variable positioning

Feedback Options
• None
• 4-20 mA feedback

Other Features
• Manual Override
• 110-240 VAC Power
• Battery Backup (min. 24 VDC power required)
• Isolated Input
• Prewired Turck M12 connector with 20 ft cable
• High Temperature Mounting Kit
