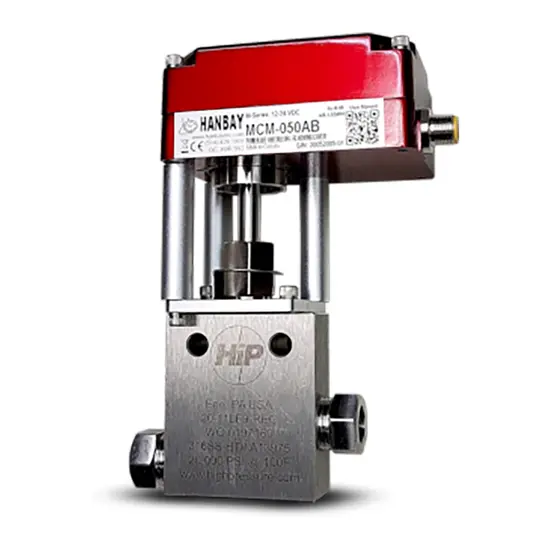

Valve: 20-11LF9-REG
Valve manufacturer: HIP
Valve type: High pressure valve
Valve material: Stainless Steel 316
Valve connection: 9/16 in. Coned-and-threaded
Line size: 0.5625
CV: 1.12
Pressure: 20000 PSI

Enclosures*
• Standard Aluminum enclosure
• Stainless-Steel enclosure
• Class I Div I Groups B,C,D (CSA and IECEx rated)
• Stainless-Steel Class I Div I Groups B,C,D (CSA and IECEx rated)
IP68 enclosures available*

Control Settings
• Analog (4-20 mA or 1-5 V)
• Modbus (RS485)
• TTL input 0 V (pull to ground)variable positioning

Feedback Options
• None
• 4-20 mA feedback

Other Features
• Manual Override
• 110-240 VAC Power
• Battery Backup (min. 24 VDC power required)
• Isolated Input
• Prewired Turck M12 connector with 20 ft cable
• High Temperature Mounting Kit
