Hanbay Inc.

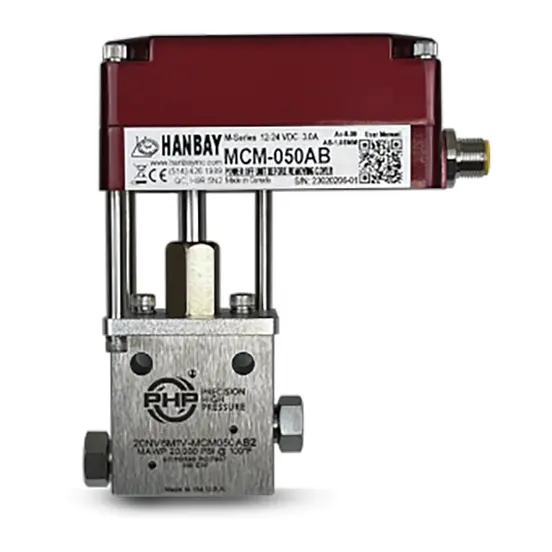

MCM-000XX-3-20NV6M1V
Hanbay M Range
- Valve: 20NV6M1V
- Valve manufacturer: PHP
- Valve type: High pressure valve
- Valve material: Stainless Steel 316
- Valve connection: 3/8 in. Compression
- Line size: 0.375
- CV: 0.075
- Pressure: 20000 PSI
Enclosures*
- Standard Aluminum enclosure
- Stainless-Steel enclosure
- Class I Div I Groups B,C,D (CSA and IECEx rated)
- Stainless-Steel Class I Div I Groups B,C,D (CSA and IECEx rated)
- IP68 enclosures available*
Control Settings
- Analog (4-20 mA or 1-5 V)
- Modbus (RS485)
- TTL input 0 V (pull to ground)variable positioning
Feedback Options
- None
- 4-20 mA feedback
Other Features
- Manual Override
- 110-240 VAC Power
- Battery Backup (min. 24 VDC power required)
- Isolated Input
- Prewired Turck M12 connector with 20 ft cable
- High Temperature Mounting Kit
Features
• Valve: 20NV6M1V
• Valve manufacturer: PHP
• Valve type: High pressure valve
• Valve material: Stainless Steel 316
• Valve connection: 3/8 in. Compression
• Line size: 0.375
• CV: 0.075
• Pressure: 20000 PSI
