Hanbay Inc.

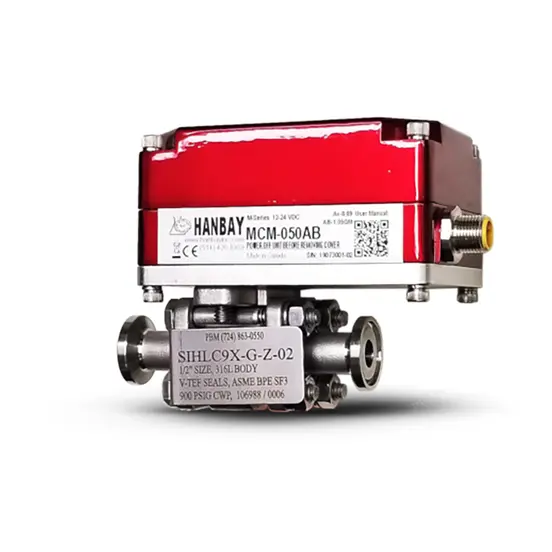

MCM-000XX-3-SIHLC9X-G-Z-02-Z
Hanbay M Range
Valve: SIHLC9X-G-Z-02-Z
Valve manufacturer: PBM
Valve type: Sanitary valve
Valve material: Stainless Steel 316
Valve connection: 1/2 in. Hygienic clamp
Line size: 0.25
CV: 8
Pressure: 900 PSI
Enclosures*
• Standard Aluminum enclosure
• Stainless-Steel enclosure
• Class I Div I Groups B,C,D (CSA and IECEx rated)
• Stainless-Steel Class I Div I Groups B,C,D (CSA and IECEx rated)
IP68 enclosures available*
Control Settings
• Analog (4-20 mA or 1-5 V)
• Modbus (RS485)
• TTL input 0 V (pull to ground)variable positioning
Feedback Options
• None
• 4-20 mA feedback
Other Features
• Manual Override
• 110-240 VAC Power
• Battery Backup (min. 24 VDC power required)
• Isolated Input
• Prewired Turck M12 connector with 20 ft cable
• High Temperature Mounting Kit
Features
• Valve: SIHLC9X-G-Z-02-Z
• Valve manufacturer: PBM
• Valve type: Sanitary valve
• Valve material: Stainless Steel 316
• Valve connection: 1/2 in. Hygienic clamp
• Line size: 0.25
• CV: 8
• Pressure: 900 PSI
Features
• Valve: SIHLC9X-G-Z-02-Z
• Valve manufacturer: PBM
• Valve type: Sanitary valve
• Valve material: Stainless Steel 316
• Valve connection: 1/2 in. Hygienic clamp
• Line size: 0.25
• CV: 8
• Pressure: 900 PSI
