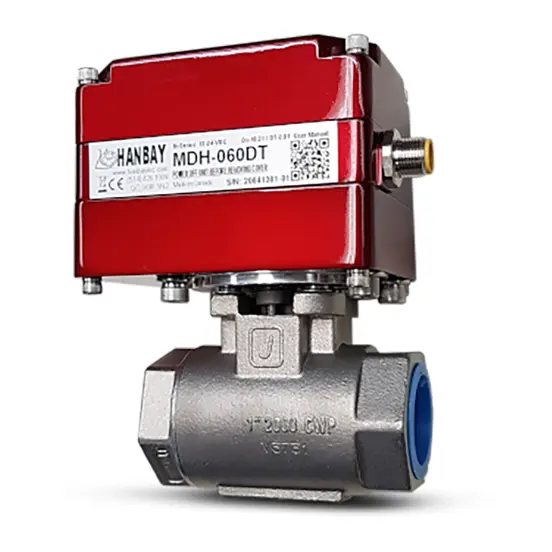

Valve: 1-9FB-3600-XTB
Valve manufacturer: Jamesbury
Valve type: Ball Valve
Valve material: Stainless Steel 316
Valve connection: 1 in. FNPT
Line size: 1
CV: 44
Pressure: 2000 PSI

Enclosures*
• Standard Aluminum enclosure
• Stainless-Steel enclosure
• Class I Div I Groups B,C,D (CSA and IECEx rated)
• Stainless-Steel Class I Div I Groups B,C,D (CSA and IECEx rated)
IP68 enclosures available*

Control Settings
• Modbus (RS485)
• TTL input 0 V (pull to ground)
contact us for other options*

Feedback Options
• 24 V integrated feedback

Other Features
• Manual Override
• 110-240 VAC Power
• Battery Backup (min. 24 VDC power required)
• Prewired Turck M12 connector with 20 ft cable
