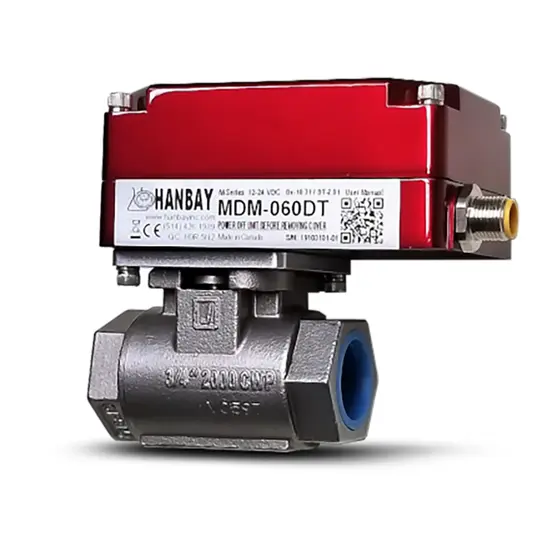

Hanbay Inc.
MDM-000XX-3-34-9FB-3600-XTB
Hanbay M Range
Valve: 34-9FB-3600-XTB
Valve manufacturer: Jamesbury
Valve type: Ball valve
Valve material: Stainless Steel 316
Valve connection: 3/4 in. FNPT
Line size: 0.75
CV: 33
Pressure: 2000 PSI
Valve manufacturer: Jamesbury
Valve type: Ball valve
Valve material: Stainless Steel 316
Valve connection: 3/4 in. FNPT
Line size: 0.75
CV: 33
Pressure: 2000 PSI
Enclosures*
• Standard Aluminum enclosure
• Stainless-Steel enclosure
• Class I Div I Groups B,C,D (CSA and IECEx rated)
• Stainless-Steel Class I Div I Groups B,C,D (CSA and IECEx rated)
IP68 enclosures available*
Control Settings
• Modbus (RS485)
• TTL input 0 V (pull to ground)
contact us for other options*
Feedback Options
• 24 V integrated feedback
Other Features
• Manual Override
• 110-240 VAC Power
• Battery Backup (min. 24 VDC power required)
• Prewired Turck M12 connector with 20 ft cable
• High Temperature Mounting Kit
• Position Indicator
Features
• Valve: 34-9FB-3600-XTB
• Valve manufacturer: Jamesbury
• Valve type: Ball valve
• Valve material: Stainless Steel 316
• Valve connection: 3/4 in. FNPT
• Line size: 0.75
• CV: 33
• Pressure: 2000 PSI
• Valve manufacturer: Jamesbury
• Valve type: Ball valve
• Valve material: Stainless Steel 316
• Valve connection: 3/4 in. FNPT
• Line size: 0.75
• CV: 33
• Pressure: 2000 PSI
