Hanbay Inc.

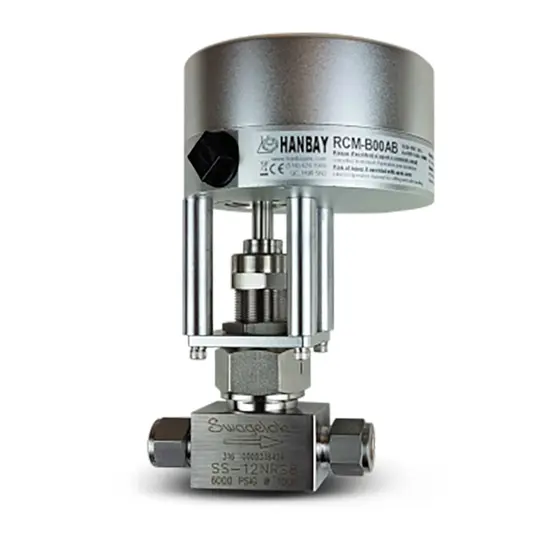

RCM-000XX-3-SS-12NRS8
Hanbay R Range
Valve: SS-12NRS8
Valve manufacturer: Swagelok
Valve type: Needle valve
Valve material: Stainless Steel
Valve connection: 1/2 in. Compression
Line size: 0.5
CV: 1.8
Pressure: 6000 PSI
Enclosures*
• Standard Aluminum enclosure
• Stainless-Steel enclosure
• Class I Div I Groups B,C,D (CSA and IECEx rated)
• Stainless-Steel Class I Div I Groups B,C,D (CSA and IECEx rated)
IP68 enclosures available*
Control Settings
• Analog (4-20 mA or 1-5 V)
• Modbus (RS485)
• TTL input 0 V (pull to ground)variable positioning
Feedback Options
• None
• 4-20 mA feedback
Other Features
• Manual Override
• 110-240 VAC Power
• Battery Backup (min. 24 VDC power required)
• Isolated Input
• Prewired Turck M12 connector with 20 ft cable
• High Temperature Mounting Kit
Features
• Valve: SS-12NRS8
• Valve manufacturer: Swagelok
• Valve type: Needle valve
• Valve material: Stainless Steel
• Valve connection: 1/2 in. Compression
• Line size: 0.5
• CV: 1.8
• Pressure: 6000 PSI
Features
• Valve: SS-12NRS8
• Valve manufacturer: Swagelok
• Valve type: Needle valve
• Valve material: Stainless Steel
• Valve connection: 1/2 in. Compression
• Line size: 0.5
• CV: 1.8
• Pressure: 6000 PSI
