Hanbay Inc.

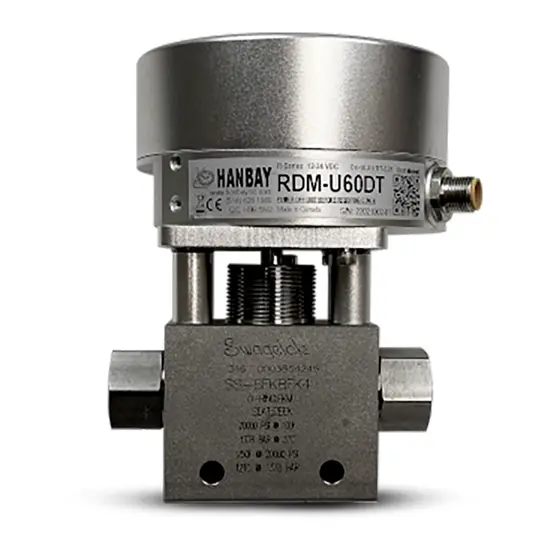

RDM-000XX-3-SS-6FKBFK4
Hanbay R Range
Valve: SS-6FKBFK4
Valve manufacturer: Swagelok
Valve type: Ball valve
Valve material: Stainless Steel
Valve connection: 1/4 in Compression
Line size: 0.25
CV: 0.5
Pressure: 20000 PSI
Enclosures*
- Standard Aluminum enclosure
- Stainless-Steel enclosure
- Class I Div I Groups B,C,D (CSA and IECEx rated)
- Stainless-Steel Class I Div I Groups B,C,D (CSA and IECEx rated)
IP68 enclosures available*
Control Settings
- Modbus (RS485)
- TTL input 0 V (pull to ground)variable positioning
Feedback Options
- 24 V integrated feedback
Other Features
- Manual Override
- 110-240 VAC Power
- Battery Backup
- (min. 24 VDC power required)
- Isolated Input
- Prewired Turck M12 connector with 20 ft cable
- High Temperature Mounting Kit
Features
- Valve: SS-6FKBFK4
- Valve manufacturer: Swagelok
- Valve type: Ball valve
- Valve material: Stainless Steel
- Valve connection: 1/4 in Compression
- Line size: 0.25
- CV: 0.5
- Pressure: 20000 PSI.
Features
Features
- Valve: SS-6FKBFK4
- Valve manufacturer: Swagelok
- Valve type: Ball valve
- Valve material: Stainless Steel
- Valve connection: 1/4 in Compression
- Line size: 0.25
- CV: 0.5
- Pressure: 20000 PSI.
