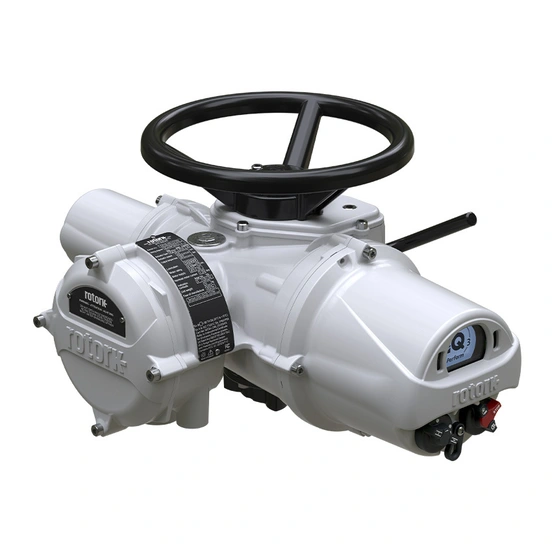

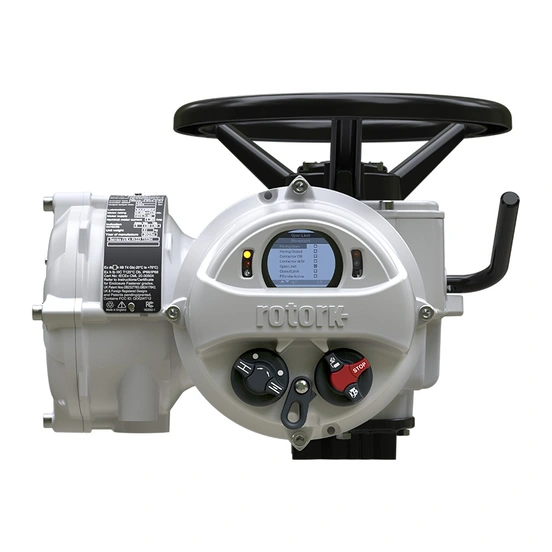

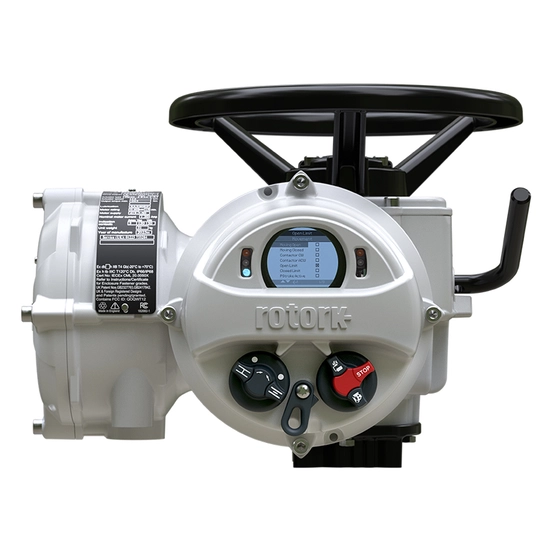

IQ3D Perform - Direct Current (DC)
IQ3 Perform
This model is a direct current-powered version of the IQ3 Perform actuator and is designed for isolation or regulation duties (Class A & B) of up to 60 starts per hour. The torque range is from 11 Nm (8 lbf.ft) to 305 Nm (225 lbf.ft). Voltage ranges available are 24 VDC and 110 VDC. With the addition of second stage gearboxes, DC multi-turn output torque up to 6,612 Nm (4,878 lbf.ft) and quarter-turn up to 131,950 Nm (97,500 lbf.ft) are available.
Features
• Continuous position tracking at all times, even without power
• On power loss, the graphical interface, remote indication, and data logger are maintained and accessible
• Oil bath lubrication provides extended life and the ability to mount in any orientation
• Increased protection by using independent torque and position sensing
• Wide range of adjustable speeds available
• Easy installation and maintenance using detachable thrust bases
• Water ingress protection, not reliant on terminal cover or cable gland sealing – double-sealed to IP66/68 7 m for 72 hours
• Safe, motor-independent, handwheel operation available at all times
• Control and commissioning via Bluetooth® Setting Tool Pro handset (BTST) or local control knobs
• Field-upgradeable and configurable control and indication options
• Rapid and secure commissioning and configuration even without power
• Detailed trend analysis and diagnostic data are available for asset management
