IQ3M Perform - Modulating
IQ3 Perform

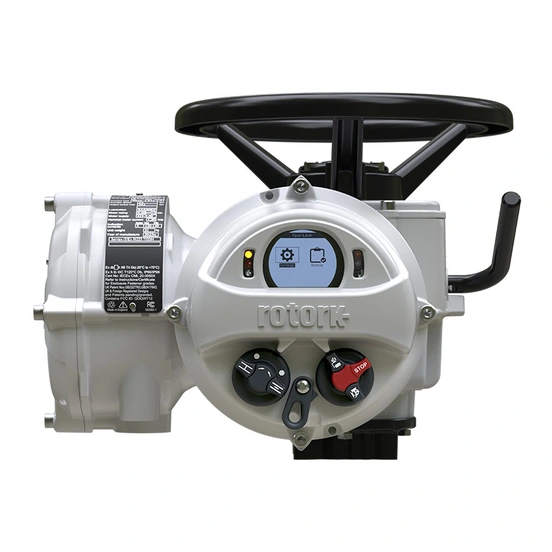

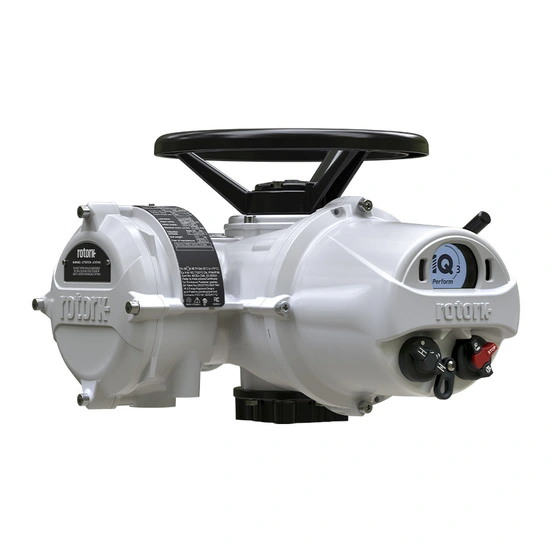

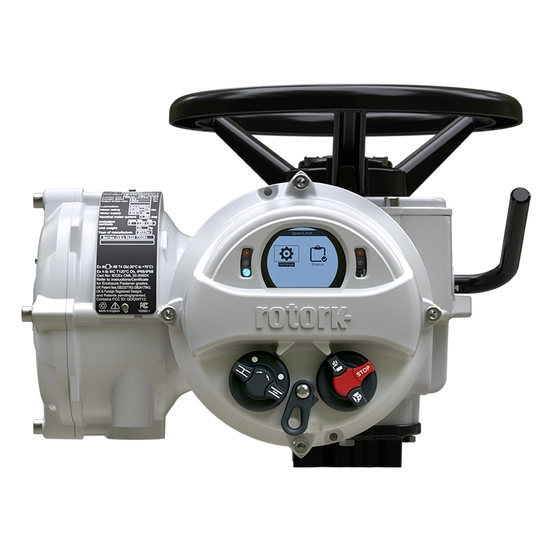

The modulating version of the IQ3 Perform actuator has a solid state reversing starter including an electronic motor ‘brake’. They feature fast-response remote control circuits for rapid control. It is suitable for up to 1,200 starts per hour (Class C). Direct torque output ranges from 11 Nm (8 lbf.ft) to 544 Nm (400 lbf.ft). With the addition of second stage gearboxes, IQM multi-turn output seating torque up to 11,750 Nm (8,672 lbf.ft) and quarter-turn up to 76,964 Nm (56,800 lbf.ft) are available.
Features
• Continuous position tracking at all times, even without power
• On power loss, the graphical interface, remote indication, and data logger are maintained and accessible
• Oil bath lubrication provides extended life and the ability to mount in any orientation
• Increased protection by using independent torque and position sensing
• Wide range of adjustable speeds available
• Easy installation and maintenance using detachable thrust bases
• Water ingress protection, not reliant on terminal cover or cable gland sealing – double-sealed to IP66/68 7 m for 72 hours
• Safe, motor-independent, handwheel operation available at all times
• Control and commissioning via Bluetooth® Setting Tool Pro handset (BTST) or local control knobs
• Field-upgradeable and configurable control and indication options
• Rapid and secure commissioning and configuration even without power
• Detailed trend analysis and diagnostic data are available for asset management
