Rotork
IQT3M Perform - Modulating
IQ3 Perform

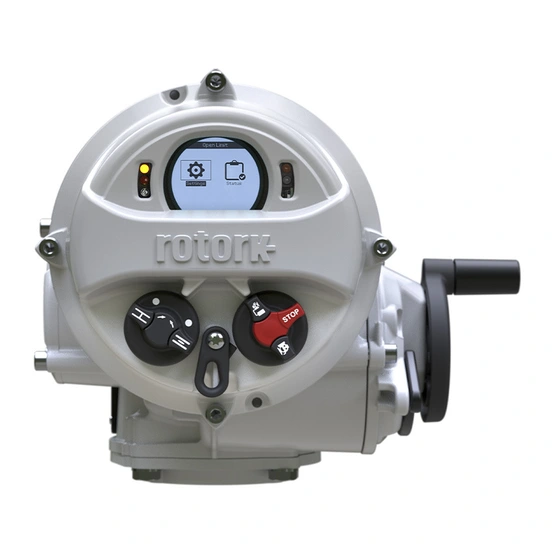

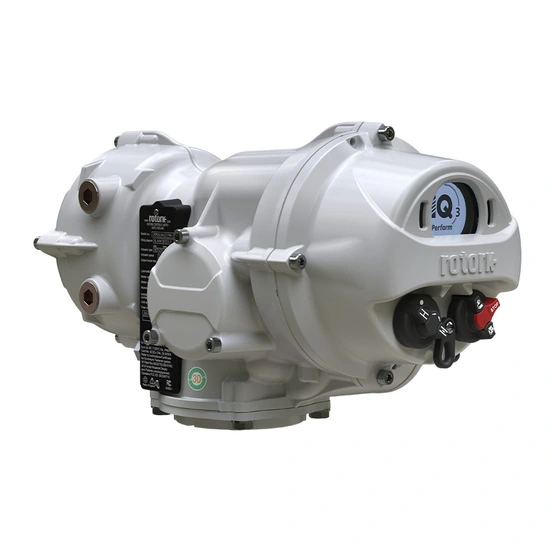

The modulating version of the IQT3 Perform electric actuator has a solid-state reversing starter. They feature fast-response remote control circuits for rapid control. The actuator is suitable for up to 1,800 starts per hour (Class C). Direct torque output is from 50 Nm (37 lbf.ft) to 3,000 Nm (2,2174 lbf.ft).
Features
• Continuous position tracking at all times, even without power
• On power loss, the graphical interface, remote indication, and data logger are maintained and accessible
• Oil bath lubrication provides extended life and the ability to mount in any orientation
• Increased protection by using independent torque and position sensing
• Wide range of adjustable speeds available
• Easy installation and maintenance using detachable thrust bases
• Water ingress protection, not reliant on terminal cover or cable gland sealing – double-sealed to IP66/68 7 m for 72 hours
• Safe, motor-independent, handwheel operation available at all times
• Control and commissioning via Bluetooth® Setting Tool Pro handset (BTST) or local control knobs
• Field-upgradeable and configurable control and indication options
• Rapid and secure commissioning and configuration even without power
• Detailed trend analysis and diagnostic data are available for asset management
Features
• Continuous position tracking at all times, even without power
• On power loss, the graphical interface, remote indication, and data logger are maintained and accessible
• Oil bath lubrication provides extended life and the ability to mount in any orientation
• Increased protection by using independent torque and position sensing
• Wide range of adjustable speeds available
• Easy installation and maintenance using detachable thrust bases
• Water ingress protection, not reliant on terminal cover or cable gland sealing – double-sealed to IP66/68 7 m for 72 hours
• Safe, motor-independent, handwheel operation available at all times
• Control and commissioning via Bluetooth® Setting Tool Pro handset (BTST) or local control knobs
• Field-upgradeable and configurable control and indication options
• Rapid and secure commissioning and configuration even without power
• Detailed trend analysis and diagnostic data are available for asset management
