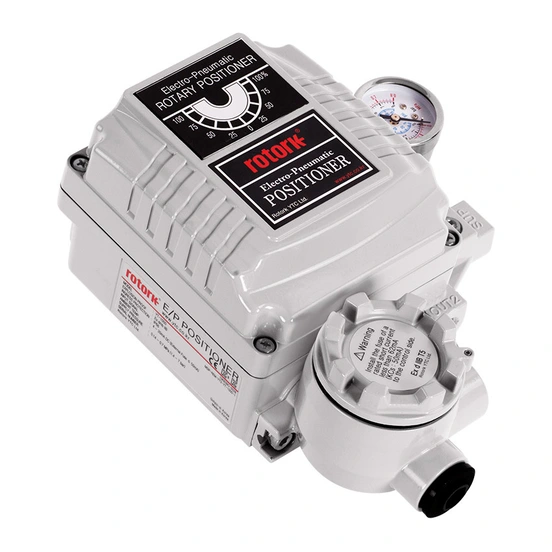

YT-1000 - Electro-pneumatic positioner

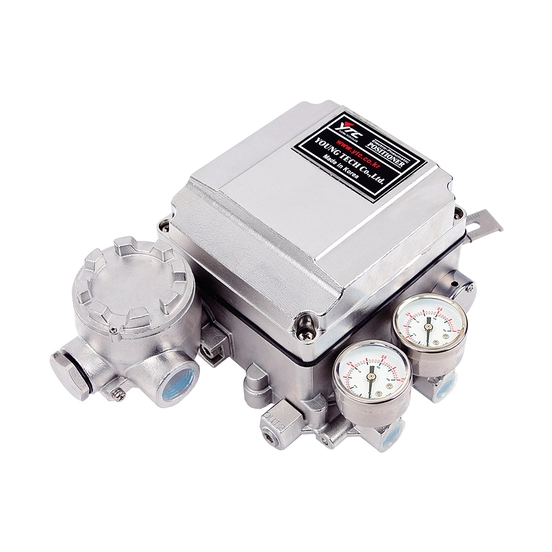

YTC - YT-1050 - Electro-Pneumatic Positioner

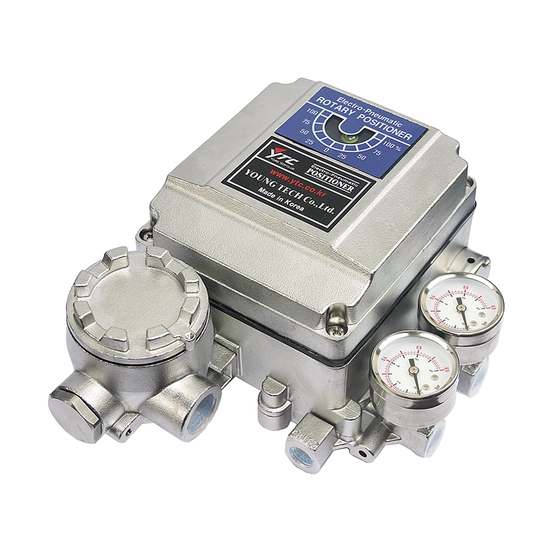

YTC - YT-1050 - Electro-Pneumatic Positioner

YTC

YT-1000

Valve Positioners

The Electro-Pneumatic Positioner YT-1000 is used for operation of pneumatic linear or rotary valve actuators by means of electrical controller or control system with an analog output signal of DC 4 to 20mA or split ranges.

Contact Us

Features
  • Simple zero and span adjustment
  • No resonance between 5-200Hz
  • Auto/Manual switch
  • RA v.s. DA action and 1/2 split range setting by simple adjustment
  • Internal feedback signal is available as an option (weather proof only)
  • Aluminum alloy housing.
Features
Features
  • Simple zero and span adjustment
  • No resonance between 5-200Hz
  • Auto/Manual switch
  • RA v.s. DA action and 1/2 split range setting by simple adjustment
  • Internal feedback signal is available as an option (weather proof only)
  • Aluminum alloy housing.
Downloads
Product Brochures
PUB126-001 - Valve Positioners and Accessories - English (pdf)
Manuals
PUB126-127 - YT-1200 - Manual - English (pdf)
PUB126-124 - YT-1000 1050 - Manual - English (pdf)
Drawings/Dimensions Data
L01 YT-1000L IA connector type Valve positioners 2D Drawing_YT1000L-01rev4_0125 (pdf)
L02 YT-1000L Juntion box type Valve positioners 2D Drawing_YT1000L-02rev12_1224 (pdf)
L03 YT-1000L SPTM(No LCD) internal Valve positioners 2D Drawing_YT1000L-03rev10_0125 (pdf)
L04 YT-1000L SPTM(LCD) internal Valve positioners 2D Drawing_YT1000L-04rev10_0125 (pdf)
MH-700L KOMOTO Valve positioners 2D Drawing_MH700L-01rev2_0125 (pdf)
MH-700R KOMOTO Valve positioners 2D Drawing_MH700R-01rev2_0125 (pdf)
R01 YT-1000R IA Connector Valve positioners 2D Drawing_YT1000R-01rev4_0125 (pdf)
R02 YT-1000R Junction box type Valve positioners 2D Drawing_YT1000R-02rev12_1224 (pdf)
R03 YT-1000R FM Valve positioners 2D Drawing_YT1000R-03rev3_1224 (pdf)
R04 YT-1000R JB NAMUR Valve positioners 2D Drawing_YT1000R-04rev3_1224 (pdf)
R05 YT-1000R Dome IA Connector Valve positioners 2D Drawing_YT1000R-05rev7_0125 (pdf)
R06 YT-1000R Dome Junction box Valve positioners 2D Drawing_YT1000R-06rev0_1224 (pdf)
R07 YT-1000R SPTM(No LCD) internal Valve positioners 2D Drawing_YT1000R-07rev11_0125 (pdf)
R08 YT-1000R SPTM(No LCD) internal Dome Valve positioners 2D Drawing_YT1000R-08rev4_0125 (pdf)
R09 YT-1000R SPTM(LCD) internal Valve positioners 2D Drawing_YT1000R-09rev10_0125 (pdf)
R10 YT-1000R SPTM-6V external Valve positioners 2D Drawing_YT1000R-10rev4_1224 (pdf)
R11 YT-1000R LS internal Valve positioners 2D Drawing_YT1000R-11rev5_0125 (pdf)
R12 YT-1000R LS(YT-850) external Valve positioners 2D Drawing_YT1000R-12rev4_0125 (pdf)
R13 YT-1000R LS(YT-870) external Valve positioners 2D Drawing_YT1000R-13rev6_0125 (pdf)
R14 YT-1000R SPTM&LS internal Valve positioners 2D Drawing_YT1000R-14rev9_0125 (pdf)
R15 YT-1000R SPTM&LS(YT-870) external Valve positioners 2D Drawing_YT1000R-15rev6_0125 (pdf)
YT-1000 1050 2500 2550 2600 3303 3400 3450 LINEAR NAMUR BRACKET ASSY 2D Drawing_A1000FAA01A0rev1_1224 (pdf)
YT-1000 1050 ROTARY BRACKET ASSY 2D Drawing_1000FAA02A0rev3_1224 (pdf)
YT-1050L Standard Valve positioners 2D Drawing_YT1050L-01rev4_0125 (pdf)
YT-1050R Standard Valve positioners 2D Drawing_YT1050R-01rev4_0125 (pdf)
YT-1200 LINEAR NAMUR BRACKET ASSY 2D Drawing_1200FAA01A0rev1_1224 (pdf)
YT-1200 ROTARY BRACKET ASSY 2D Drawing_1200FAA02A0rev2_1224 (pdf)
YT-1200L Standard Valve positioners 2D Drawing_YT1200L-01rev8_0125 (pdf)
YT-1200R Indicator dome Valve positioners 2D Drawing_YT1200R-02rev5_0125 (pdf)
YT-1200R SPTM-5V External Valve positioners 2D Drawing_YT1200R-03rev4_0125 (pdf)
YT-1200R SPTM-6V External Valve positioners 2D Drawing_YT1200R-04rev5_0125 (pdf)
YT-1200R Standard Valve positioners 2D Drawing_YT1200R-01rev8_0125 (pdf)
YT-1200R YT-850 External Valve positioners 2D Drawing_YT1200R-05rev5_0125 (pdf)
YT-1200R YT-870 External Valve positioners 2D Drawing_YT1200R-06rev4_0125 (pdf)
Technical Information
YT-1000 SPTM LCD in Wiring Diagram (pdf)
YT-1000R LS(Proximity) in Wiring Diagram (pdf)
YT-1000 SPTM in Wiring Diagram (pdf)
YT-1000_1050 Junction box type Wiring Diagram (pdf)
YT-1000R Non exp SPTM LS(SPDT) ext Wiring Diagram (pdf)
YT-1000R LS(DPDT) in Wiring Diagram (pdf)
YT-1000R Junction box SPTM LS(SPDT) ext Wiring Diagram (pdf)
YT-1000 Non exp Ex ia Wiring Diagram (pdf)
YT-1000R SPTM LS(SPDT) in Wiring Diagram (pdf)
YT-1000R LS(SPDT) in Wiring Diagram (pdf)
Certificates
PUB126-033 - YTC Electro Pneumatic Positioner 1000-1050 - IECEx Certificate of Conformity - English (pdf)
PUB126-029 - YTC Smart Positioners 1000 - TIIS Certificate of Conformity - English (pdf)
PUB126-032 - YTC Electro Pneumatic Positioner 1000-1050 - ATEX Certificate of Conformity - English (pdf)
PUB126-034 - YTC Electro Pneumatic Positioner 1050 - IC Safety Certificate of Conformity - English (pdf)
PUB126-203 - ATEX YT-2xx, 3xx, 4xx, 5xx, 1200 - Certification - English (pdf)
PUB126-035 - YTC Pneumatic Positioner 1200 - KOLAS IP66 Certificate of Conformity - English (pdf)
PUB126-190 - IECEx YT-1000, 1050 - Certification - English (pdf)
PUB126-200 - PESO YT-1050_Ex db - Certification - English (pdf)
PUB126-198 - PESO YT-1000_Ex db - Certification - English (pdf)
PUB126-202 - UKEX YT-1000, 1050 - Certification - English (pdf)
PUB126-028 - YTC Smart Positioners 1000 - Ex NEPSI Certificate of Conformity - English (pdf)
PUB126-184 - ATEX YT-1000, 1050 - Certification - English (pdf)
PUB126-199 - PESO YT-1000_Ex ia - Certification - English (pdf)
PUB126-186 - CSA YT-1000 - Certification - English (pdf)
PUB126-189 - FM YT-1000 - Certification - English (pdf)
PUB126-026 - YTC Smart Positioners 1000 - IC Safety Certificate of Conformity Ex dmb IIB T5 - English (pdf)
PUB126-027 - YTC Smart Positioners 1000 - IC Safety Certificate of Conformity Ex dmb IIC T5 IP66 - English (pdf)
